Fire Resistant XLPE Round Wire Cable with Customized Request Material Shape

Fire Resistant XLPE Round Wire Cable with Customized Request Material Shape

Fire resistant XLPE round wire cable

Customized XLPE electrical wire

UL certified round wire cable

証明:

ISO9001, CCC, RoHS, TUV UL

連絡 ください
引金 を 求め て ください
製品詳細
モデルNO:
xlpeケーブル
導体材料:
蓋材:
PVC
断熱材料:
xlpe
材料の形状:
丸いワイヤ
応用範囲:
炎阻害剤
ブランド:
LK
会社:
製造
カスタム:
カスタム
ジャケット1:
シリコン
燃焼度:
耐火性
パッケージ:
ロール
直径:
25mm
Diameter1:
35mm
直径2:
50mm
直径3:
75mm
輸送パッケージ:
カートン
仕様:
50*55*60CM
商標:
LK
原産地:
中国
Hsコード:
854449290
供給の能力:
5000個/日
パッケージのサイズ:
850.00cm * 850.00cm * 580.00cm
パッケージの総重量:
210.000kg
タイプ:
断熱
導体型:
ぶら下がった
適用する:
オーバーヘッド,暖房,地下,新しいエネルギー
サンプル:
100ドル/ピース 1ピース (最低注文)
カスタマイズ:
利用可能 カスタマイズされた要求
送料:
運送コストと 納品予定時間について
 :
初期支払 完全支払
通貨:
アメリカドル
リターン&リファンド:
商品を受け取ってから30日以内にお金を返済することができます.
ハイライト:

Fire resistant XLPE round wire cable

,

Customized XLPE electrical wire

,

UL certified round wire cable

支払及び船積みの言葉
製品の説明

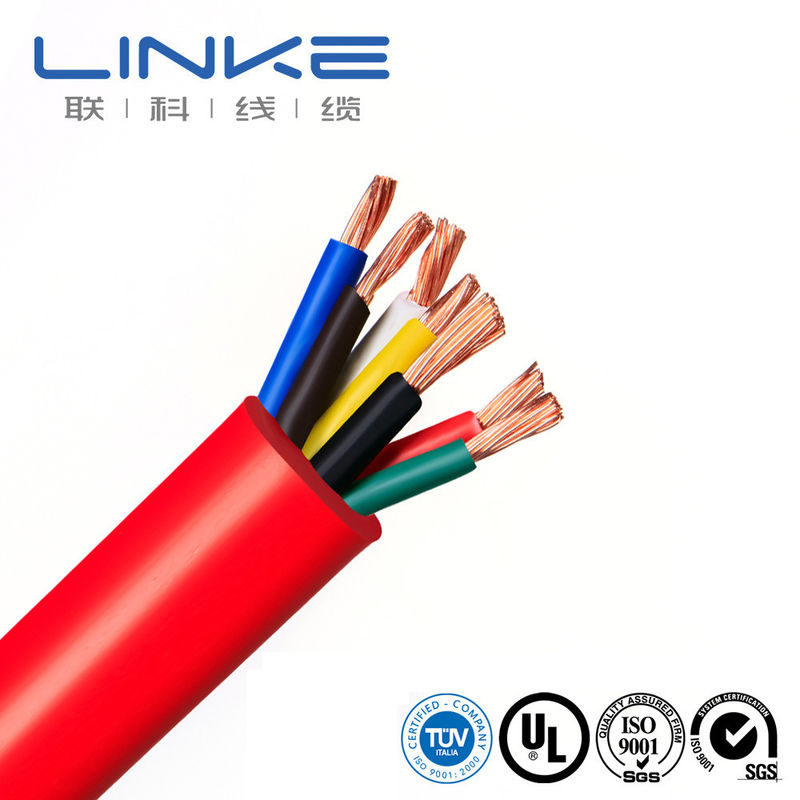

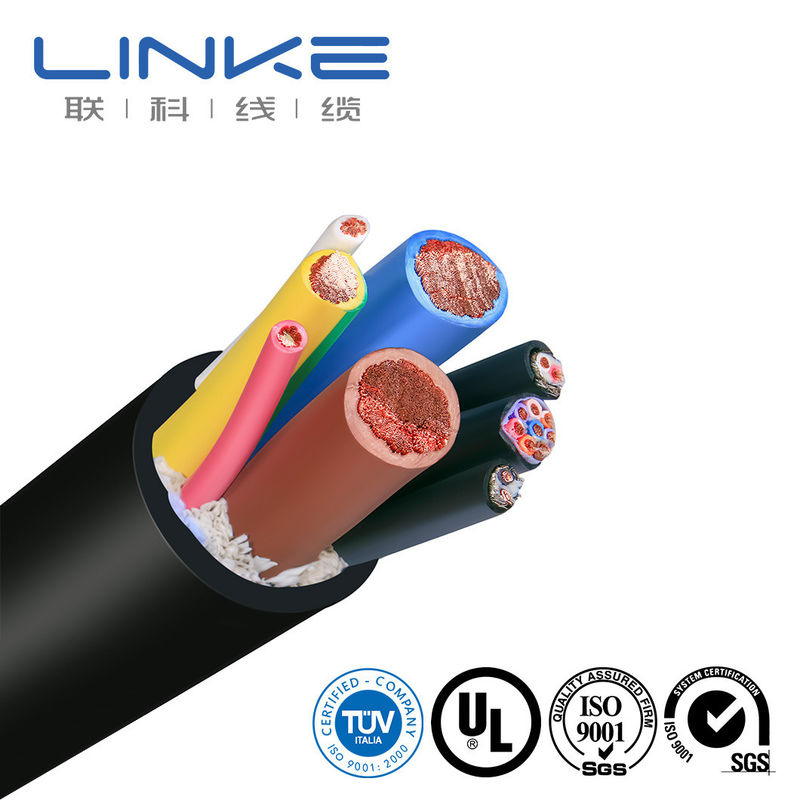

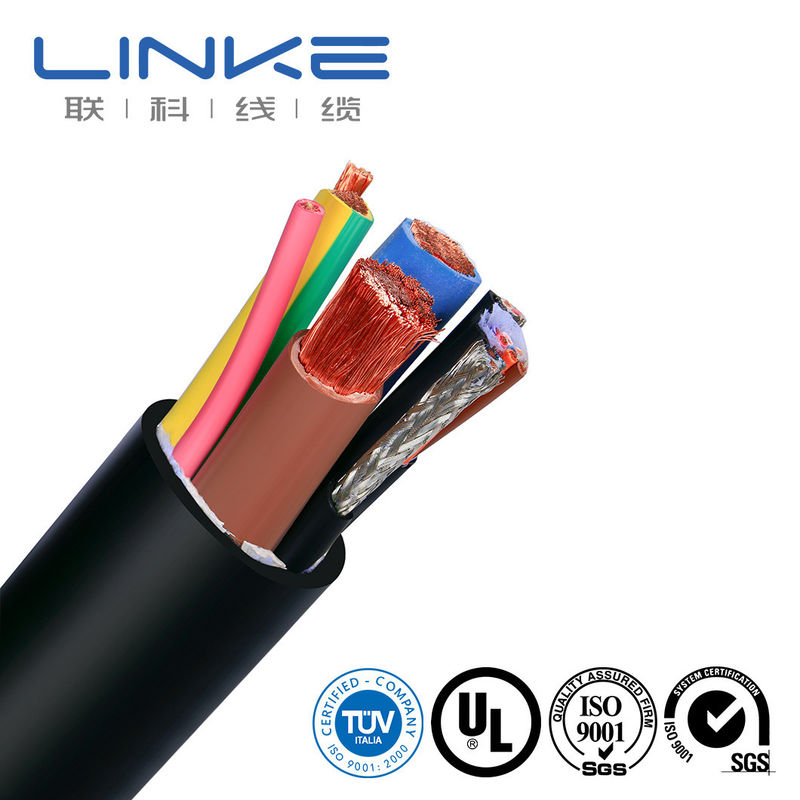

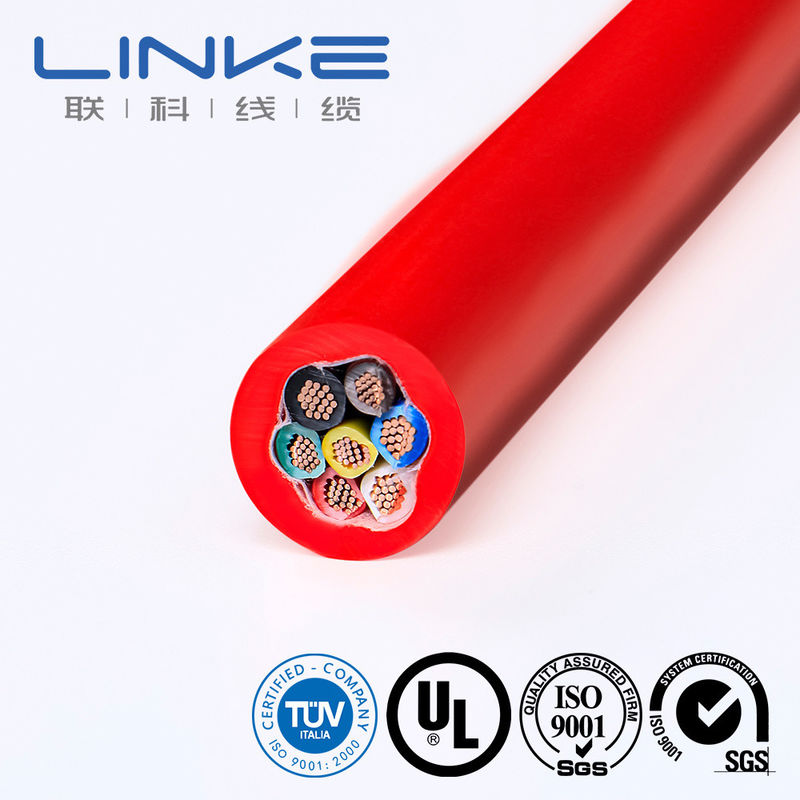

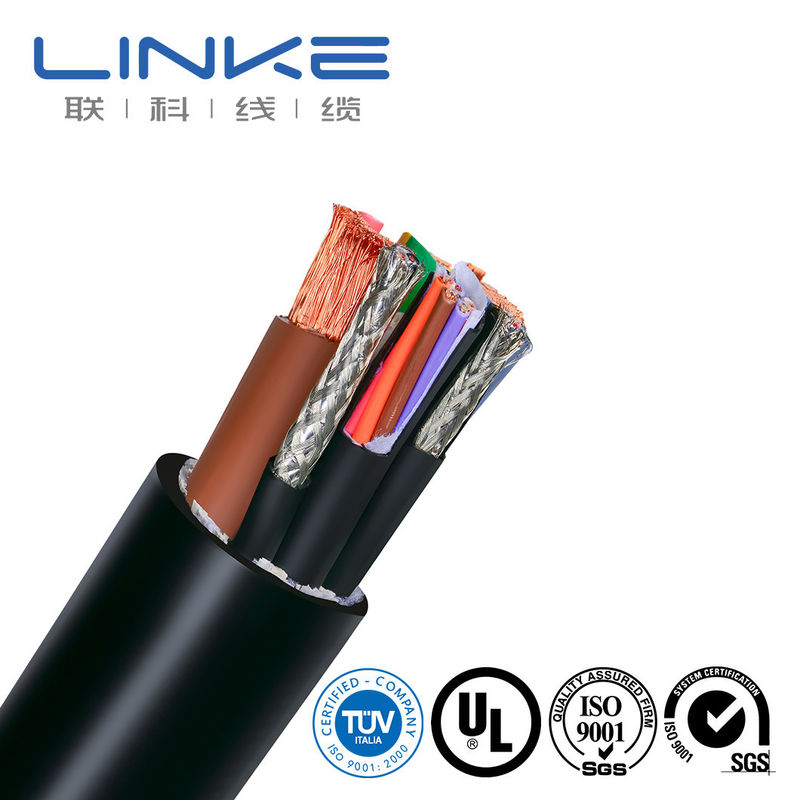

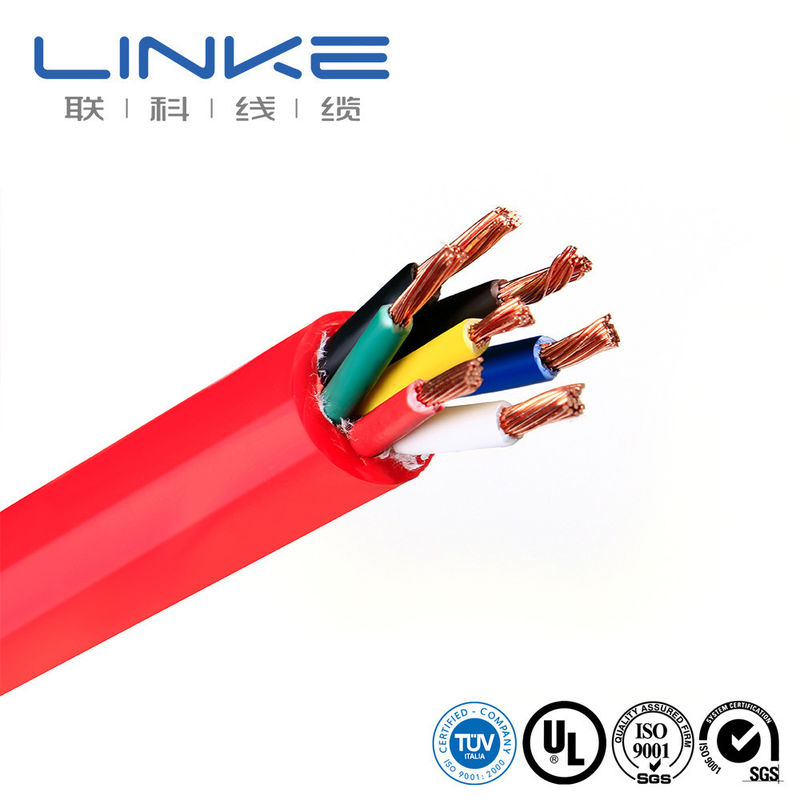

Fire Resistant XLPE Wire Cable
Fire-resistant cable refers to the cable that can maintain a certain period of safe operation in the case of flame combustion. Fire-resistant cables are widely used in high-rise buildings, underground railways, underground streets, large power stations and important industrial and mining enterprises and other places related to fire safety and fire rescue, such as fire equipment and emergency lighting and other emergency facilities power supply lines and control lines.




No. Of cores x Construction
(mm2)
Conductor Construction
(n / mm)
Conductor No./mm Insul.
Thick. (mm)
Current Aarring Capacity (A)
1X1.5 30/0.25 1.6  4.9  30.00
1X2.5 50/0.256 2.1  5.5  41.00
1X4.0 56/0.3 2.6  6.2  55.00
1X6.0 84/0.3 3.2  7.2  70.00
1X10 142/0.3 4.0  9.1  98.00
1X16 228/0.3 5.7  10.2  132.00
1X25 361/0.3 6.8  12.0  176.00
1X35 494/0.3 8.8  13.8  218.00
1X50 418/0.39 10.0  16.0  280.00
3X70 589/0.39 11.8  18.4  350.00
3X95 798/0.39 13.8  21.3  410.00


Fire Resistant XLPE Wire CableFire Resistant XLPE Wire Cable

Company Profile:

Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China. In the past over 10 years, Linke Cable has been focusing on R&D, production and marketing of wire and cable. Linke provide various cables&custom cable solutions for all over the world. We are specialized in EV charging cable, medical cable, silicone cable, spring cable, braided cable, towlobe cable, UL wire, automotive cable, etc.

At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer approach to develop better cables for customers and  improve the quality of one's life.
Fire Resistant XLPE Wire CableFire Resistant XLPE Wire Cable

Our certification:

We past UL1007,UL1185,UL1672,UL10070,UL10483,UL1015,UL1569,UL10012,UL10269(Single conductor,thermoplastic insulation)
UL2095,UL2129,UL2468,UL2586,UL2725,UL20233,UL20280,UL20963,UL2103,UL2463,UL2517,UL2587,UL2835,UL20276,UL20549,UL21198,2104,UL2464,UL2576,UL2661,UL2919,UL20279,UL20886,UL21664
Fire Resistant XLPE Wire Cable
ISO9001 and ISO13485,TS16949

CNR- Appliance Wiring Material,

Extruded PVC Insulated Single,rated 105ºC,1000V,ClassI,GroupA,B,or AB, FT1 and/or FT2.

Extruded PVC Non-integral Jacketed Cable, rated 105"C, 1000V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2.

Extruded TPU Non-integral Jacketed Cable, rated 80"C, 300V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2
Fire Resistant XLPE Wire CableFire Resistant XLPE Wire Cable

FAQ



1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

Welcome to visit us. We'll pick you up in Shenzhen.


2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.



3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.



4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.



5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company
